Vishay Launches High-Speed Optocoupler for Streamlined Digital System Integration
Rutronik introduces Vishay’s VOIH72A, a compact 25 MBd optocoupler offering strong noise immunity and signal isolation for SPI, PWM, and UPS systems, with minimal distortion and wide temperature support.
www.rutronik.com

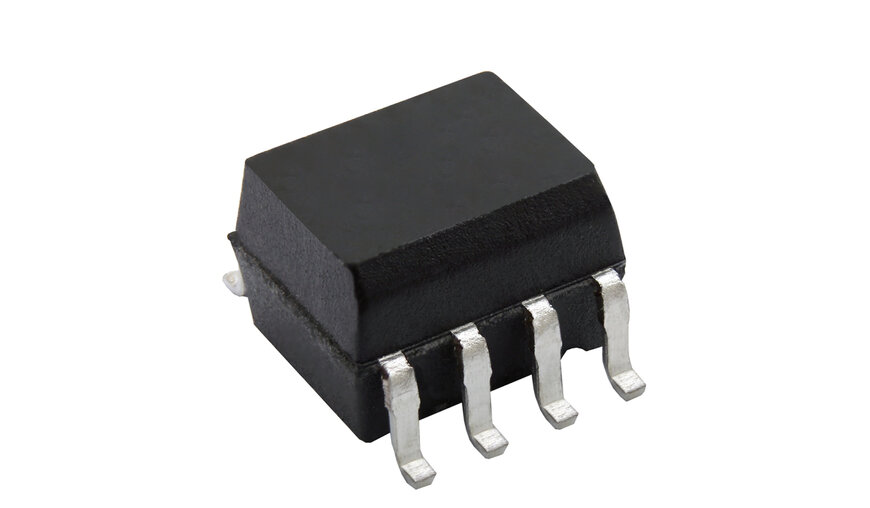

Rutronik's portfolio includes the 25 MBd high-speed optocoupler VOIH72A from Vishay. The digital input and output of the single-channel component enables easy integration into digital systems, makes external driver stages and current limiting resistors obsolete, simplifies designs and reduces costs. The space-saving component combines a maximum pulse distortion of only 6 ns, a maximum supply current of 2 mA and a supply voltage range of 2.7 V to 5.5 V and is fast enough to support BUS systems such as SPI, as well as controllers for UPS systems or to transmit high-resolution PWM signals.
The optocouplers have no forward current or current limiting resistor at the input and no pull-up resistor at the output and deliver a high-speed data rate of up to 25 MBd. They feature digitally controlled LED drivers with high-speed IRED, coupled with integrated optical photodiode IC detectors. The components offer a guaranteed common mode interference immunity (CMTI) of at least 20 kV / µs, which, combined with a low switch-on threshold and low supply current, makes them ideal for noise suppression and the interruption of ground loops.
Suitable for use in an operating temperature range from -40 °C to +110 °C and installed in a small form factor SOIC-8 package, they are also pin-compatible with solutions from other manufacturers and are particularly suitable for use in new and existing designs for applications in data communication, pulse width modulation or the provision of high-voltage safety in motor drives or automation devices.
Benefits at a glance:
- Digital CMOS logic input and output
- High-speed data rate of 25 MBd
- Supply voltage range from 2.7 V up to 5.5 V
- Operating temperature range from -40 °C to +110 °C
- Low maximum pulse width distortion of 6 ns
- Maximum supply current of only 2 mA
- SOIC-8 housing
- RoHS compliant
- Digitally controlled LED drivers with high-speed IRED, coupled with integrated optical photodiode IC detector
- Pin-compatible with solutions from other manufacturers
Application examples:
- Galvanic isolation in digital systems
- Elimination of earth loops
- Isolation of digital BUS systems
- Isolation of PLC and ATE interfaces
- Feedback control in digital power supplies
In market segments like
- Automotive industry
- Industry 4.0
- Advanced robotics
For more information to the VOIH72A optocoupler by Vishay and a direct ordering option, please visit our e-commerce platform.
