Hutchinson Tackles Advanced Robotics Challenge with Ultra-Precise Nonius Magnet Ring Innovation
Precision is key in robotics and automation. Hutchinson has developed a custom magnet ring designed to meet the most demanding requirements, achieving an absolute angular measurement accuracy of ±0.02°, beyond current market standards.
precisionsealingsystems.hutchinson.com
Robotic arms, humanoid exoskeleton, and industrial machinery all rely on compact, high-performance actuators. To meet these needs, a leading player in integrated motion systems turned to Hutchinson for a solution that could deliver unmatched angular precision.

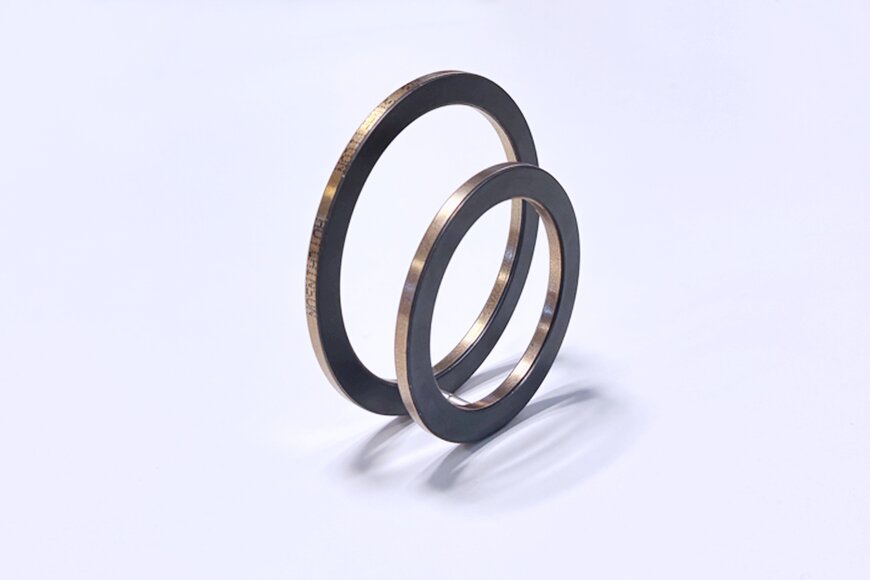

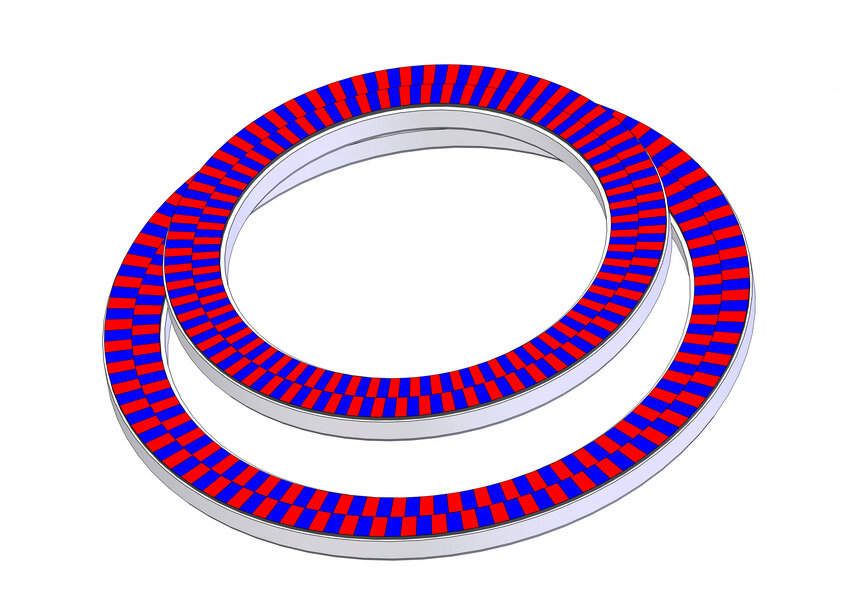

Tailor-Made Innovation: Dual-Track Nonius Magnet Rings
Standard magnetic targets offer an accuracy of ±0.1°, which fell short of the client’s expectations. Hutchinson responded with a bespoke design: a pair of dual-track Nonius magnetic rings integrated into a compact, high-performance encoder.
This development has involved:
• A custom product design tailored to the client’s embedded electronics.
• An optimized manufacturing process to ensure enhanced mechanical and magnetic precision.
The first ring controls angular position, while the second measures speed—critical for motor control. Together, they form a reliable, compact magnetic encoder.
Proven Performance in Extreme Conditions
Hutchinson’s solution stands out for its:
• Ultra-high precision: absolute angular measurement of ±0.02°, validated under extreme conditions.
• Compact integration: seamlessly fits into existing electronic architectures.
• Reliable repeatability: consistent performance even in constrained environments.
• Easy implementation: rings adapt to existing setups, simplifying final assembly.
• Technical partnership: close collaboration throughout the development process.

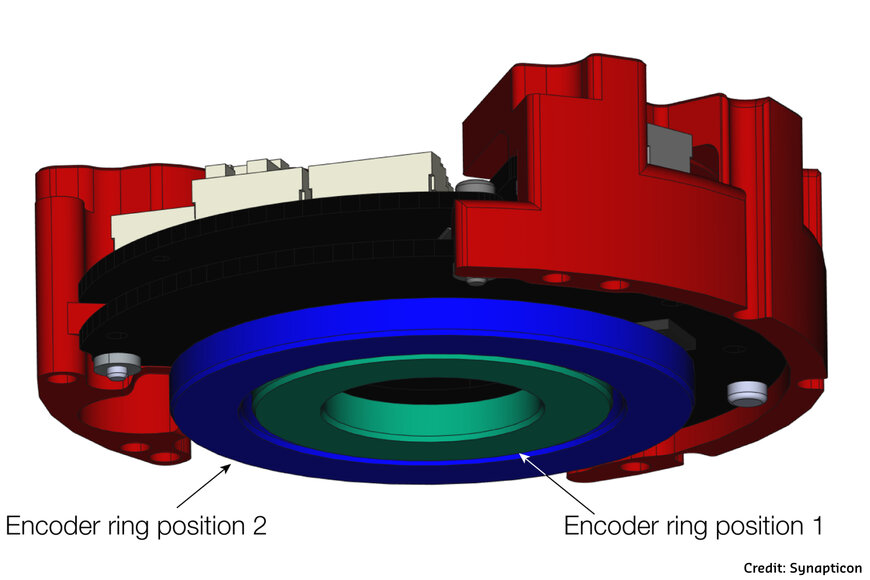

A Ready-to-Use Sensor-Actuator System
This breakthrough enables our customers to integrate a fully operational sensor-actuator system straight out of the box, without calibration or adjustment. It simplifies implementation, reduces development costs and eliminates the need for additional components.
Meet us at SPS 2025 in Nuremberg!
Want to learn more about our ultra-precise magnetic solutions? Our teams will be present at the SPS trade show in Nuremberg from November 25th to 27th. Come and meet us at booth 110, hall 4A, to discuss your motion control challenges and discover how Hutchinson can support your innovation projects.
